Aircraft Capacity Details : B757

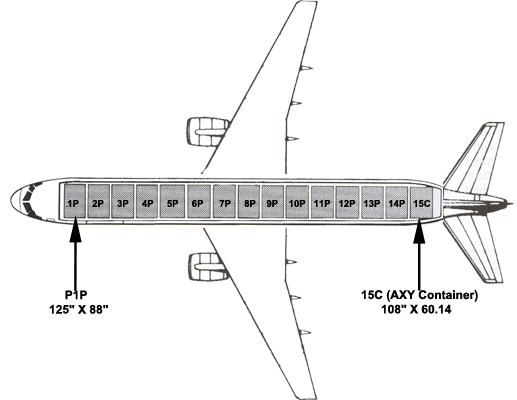

The B757-freighter is a medium sized, short to medium range jet liner that can carry approximately 28 tonnes of cargo. The aircraft has a main deck that can accomodate fourteen P1 pallets and one AXY container. It also has two belly holds comprising of two compartments that can carry up to 15.4 tonnes of bulk loads.

COMPARTMENT 1 2   3 4 5
HOLD FORWARD   REAR
Max.Comp.Load 2378 4200 (Kgs) 3494 2193 3198
Max.Floor Loading 68 K./Sq.ft 68
Usable Volume 19.8 (Cu.m) 27.9
Usable Volume 699 (Cu.ft) 988

PALLET CONTOURS

  Bottom Width Left/Right Height Centre Height Max. Weight
1P - 6P 125in 40in 79in 2267 K
7P - 8P 125in 40in 79in 4263 K
9P - 10P 125in 40in 79in 2267 K
11P - 12P 125in 40in 79in 2222 K
13P 125in 40in 79in 2131 K
14P 125in 40in 79in 2041 K
15C ( AXY Container) 108in -- 60.4in 1043 K
Pallet Size : 1P to 14P : P1P : 125 in x 88 in
    15C ( AXY Container) : P2P : 108 in x 60.4 in
Volume : 1P to 14P : 174.4 cu.m
    15C ( AXY Container) : 4.2 cu.m
Total Weight of Pallet : 1P to 14P : 110 kgs
    15C ( AXY Container) : 136 kgs
Total Main Deck Volume : 178.7 cu.m
DIMS of Main Deck Door : 134 in x 88 in
